Changed the name from Bay Area to California T-Trak as the other member, Kiha66 (Sam) is now in Southern California.



A quick introduction - hopefully I'm not stealing someone else's club name but couldn't come up with anything else, maybe later.  Sam and I will attempt to build some modules and begin to have meet-ups at my office and hopefully get others involve as well.  We'll use this thread to document our work and progress.  We welcome all feedback as this will be very much a learning process and in the end have some nice modules to share with folks.

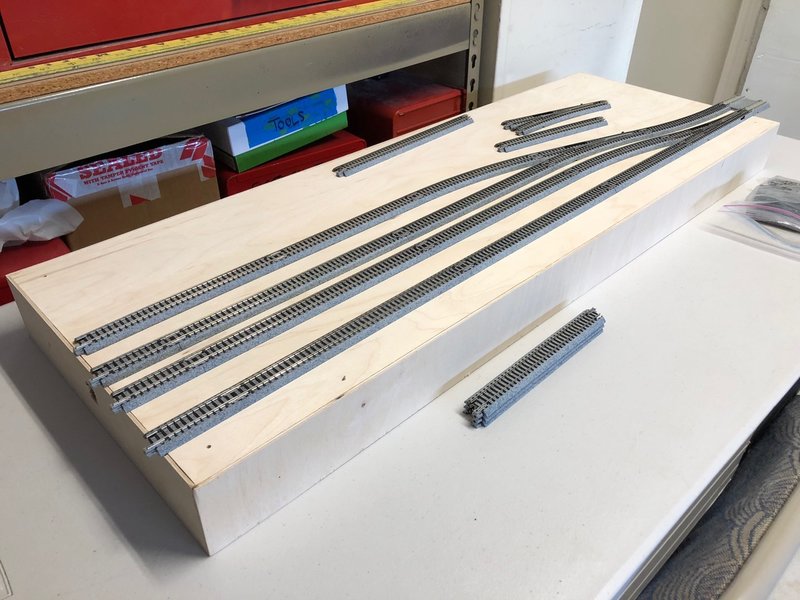

I'm working on building a yard / staging area and would prefer to use #6 turnouts rather than #4's and this is what I ran into.  I might have to settle with the #4's and read up on the necessary work to make it perform better.  I will use 2 triple deep modules to start and can always add center pieces to make it longer as the goal would be to accommodate a 16 car Shinkansen.



With the #6's, the ends didn't quite line up and are also not long enough.  Only the first track had the little overhang.  Will continue to fiddle with this and try to make it work.





With the #4's they fit perfectly and have slight overhang that is needed.

IMG_1359.thumb.jpeg.f16a733c9df4fcb2010a24d4e5d3f152.jpegIMG_1358.thumb.jpeg.237510c08a1f2047e872402552565d6a.jpeg

Edited by serotta1972
added intro
  • Like 3

Share this post


Link to post
Share on other sites

Yeah when you start doing various odder ladders the spacing will go off on you. It can take some fiddling to get it just right for an order arangement as sometimes impossible for perfect Ttrak joints. One solution is to make a custom straight by cutting out some of the roadbed in the middle of a straight, sliding the two ends together and cutting rail to length. Then glue the two pieces of roadbed together with some epoxy.



also if it’s not the main lines and these are run as dedicated modules together, the yard tracks could just mismatch by a few mm on the ends (ie one sticking out on one module and the other inset a little on the other module).



cheers



jeff

Share this post


Link to post
Share on other sites

Awesome work Junior!  For the two middle tracks are you using s62 or s64s for the short straights at the end?  If its s62s switching to s64s will give you a little more distance.  I found a example diagram, seems the #6 switch and 718-15 curves need to use a few s64 length straights to bring them back to the 62mm unitrack standard.

5a8bb29f27be2_kato-unitrack-20-202-6-left-turnout-with-28-1-4-radius-curve-2-21-p.thumb.gif.ecaeb51aa0d20b896375b8a3443703d5.gif

Share this post


Link to post
Share on other sites

I was meaning to drag that diagram out to see if there was an easy answer! It’s a handy diagram! Good work kiha.



jeff

Share this post


Link to post
Share on other sites

Cool, thanks Sam.  I will get some S64's, I think that will do the trick.  Yay, I will get to use the #6 turnouts and will 6 tracks in the yard.





Share this post


Link to post
Share on other sites
18 hours ago, serotta1972 said:

 Sam and I will attempt to build some modules and begin to have meet-ups at my office and hopefully get others involve as well.  We'll use this thread to document our work and progress.  We welcome all feedback as this will be very much a learning process and in the end have some nice modules to share with folks.





Great idea and I can't wait to see your progress!

Share this post


Link to post
Share on other sites

IST, you and your gang there has been the inspiration. Also been reading past threads and  lots of great work has been done and shared.

  • Like 1

Share this post


Link to post
Share on other sites

First quick and dirty module is built, and the first track is being glued down.  These will be rural filler (and guinea pig) modules while the more robust kit modules will have the better scenery.  I'm securing the track with white glue, and then held down by a semester of engineering textbooks.





Edited by Kiha66
  • Like 3

Share this post


Link to post
Share on other sites

As I see that Practical Electronics for Investors book is really practical. :grin

Share this post


Link to post
Share on other sites
4 minutes ago, IST said:

As I see that Practical Electronics for Investors book is really practical. :grin



The most use I've gotten out of it all year!

  • Haha 1

Share this post


Link to post
Share on other sites

I didn't realize textbooks still existed. :)  But very creative use and looking forward to see what happens after the books are taken off.   Are you using only glue Sam or will you be using screws or nails to fasten the ends.  I'm still debating and there's much discussion on preference.

Share this post


Link to post
Share on other sites
6 hours ago, IST said:

As I see that Practical Electronics for Investors book is really practical. :grin

That would be _inventors_, but it also sounds plausible with investors, especially for the Bay Area. :grin

Share this post


Link to post
Share on other sites
9 hours ago, serotta1972 said:

I didn't realize textbooks still existed. :)  But very creative use and looking forward to see what happens after the books are taken off.   Are you using only glue Sam or will you be using screws or nails to fasten the ends.  I'm still debating and there's much discussion on preference.



I wasn't able to find any screws or nails, so I'm just using standard white glue.  So far the results are pretty promising, the first track is dry and feels very solid.  Making slow progress adding the second track today.  My now abundant collection of rerailers is comming in very handy.


Share this post


Link to post
Share on other sites

Kiha,



looking nice!



you might get some small M1.2 or 1.4 x 10mm screws to go in right near the ends of the modules. Folks have had great success gluing track down in Ttrak except at times the ends pop loose as they can take some torque sometimes pulling modules apart (I try to always do this with a slim flat head screw driver between the modules between the two tracks and twist) or the ends getting caught on something when being moved. Really depends on how much you plan on moving them as well!



cheers



jeff

Share this post


Link to post
Share on other sites
1 hour ago, Kiha66 said:

  My now abundant collection of rerailers is comming in very handy.





What exactly are those rerailers doing?

Share this post


Link to post
Share on other sites
12 minutes ago, gavino200 said:

What exactly are those rerailers doing?



The side of the rerailer has notches that fit on the top of the rails.  These hold the rails to the kato doubletrack spacing while the glue dries so it will be parallel and at the right 33mm distance the whole way accross the module.



18 minutes ago, cteno4 said:

you might get some small M1.2 or 1.4 x 10mm screws to go in right near the ends of the modules. Folks have had great success gluing track down in Ttrak except at times the ends pop loose as they can take some torque sometimes pulling modules apart (I try to always do this with a slim flat head screw driver between the modules between the two tracks and twist) or the ends getting caught on something when being moved. Really depends on how much you plan on moving them as well!



Thanks Jeff!  I'll try to order some for my next module.  I just didn't know what to order the first time around, there really isn't much info on how to secure the track.  All I could find was some older posts suggesting a special brand of screws which seem to be out of stock everywhere.

Edited by Kiha66
  • Like 1

Share this post


Link to post
Share on other sites

Sorry forgot to paste in the link for an example



https://www.ebay.com/itm/New-M1-4-M1-7-M2-M2-6-Black-Steel-Phillips-Cross-Countersunk-Head-Tapping-Screws/173129189616?hash=item284f4dc8f0:m:m-jXReF42PZ4VgNux_eccrg



you can add these to the current ones, just drill a small hole near the end and cut a little v countersink in and add the screw. It just gives that extra strength to not pop the glue at the ends if they to take a whack.



are you going to make one of those long modules flipped over to do the bridges on?



cheers



jeff

Share this post


Link to post
Share on other sites

Thanks Jeff!  Thats exactly what I needed!



10 minutes ago, cteno4 said:

are you going to make one of those long modules flipped over to do the bridges on?



Yep, I got the bridges in a lot of track at a show so I was planing to do a river module.  Originally I wanted to use kato's 124mm girder bridge, but even in bulk that would have been rather more expensive that I was hoping.  So the double track bridges will have to do.

Share this post


Link to post
Share on other sites

Good stuff Sam.  I got the yard/staging area situated with the use of S64's and will be ordering the other modules.  At this rate maybe we can have a trial run even with bare modules just to see and run trains next month.  Man, it looks like we want to build very similar modules as I also would like a river with bridge module.

Share this post


Link to post
Share on other sites
19 minutes ago, serotta1972 said:

Good stuff Sam.  I got the yard/staging area situated with the use of S64's and will be ordering the other modules.  At this rate maybe we can have a trial run even with bare modules just to see and run trains next month.  Man, it looks like we want to build very similar modules as I also would like a river with bridge module.



No worries Junior, I have another finished flat base to use before making the river scene.  The plate track arrived this evening too, so now all I'm waiting on is the station roads.

Share this post


Link to post
Share on other sites

Perfect as you can have the two large river modules back to back across from each other with the river running across the table!



jeff

  • Thanks 1

Share this post


Link to post
Share on other sites

Unfortunately McMaster and many sources don’t carry small screws long enough for this purpose (about 6mm max). With trainaids gone there are very few small, long track screw sources left.



jeff

Share this post


Link to post
Share on other sites

The textbooks return!  The second line is being glued and I can start scenery work tomorrow hopefully.


Share this post


Link to post
Share on other sites
38 minutes ago, cteno4 said:

Unfortunately McMaster and many sources don’t carry small screws long enough for this purpose (about 6mm max). With trainaids gone there are very few small, long track screw sources left.



jeff

I use the metal screws, pilot holes and wood glue. I drill pilot holes, dab the hole with glue and screw them in slow.



I hate waiting weeks for stuff. I rather pay and get it done



Inobu



Edited by inobu

Share this post


Link to post
